ELT / ELK

Spindle driven with
trapezoidal or ballscrew spindle

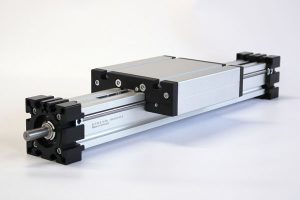

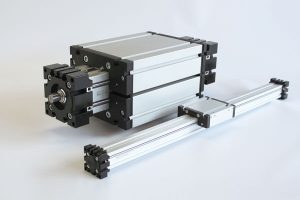

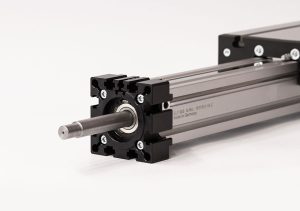

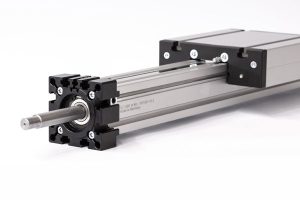

Function: This linear unit consists of an aluminium hollow section with integral, parallel ground and hardened steel guide rods. The carriage has play-adjustable ball-bearing rollers which engage with the guide rods. The rotating trapezoidal/ballscrew causes linear motion of the ballnut, which is connected to the carriage. The slot necessary for this is covered by a stainless steel strip, making the unit dust- and splash-proof. Lateral adjustment of movement for parallel units, or when two carriages are mounted on one unit, is provided by the ballnut mounting.

As required, max. length 3.000 mm
(EL 30 / max. 1500 mm, EL 40 / max. 2000 mm)

By T-slots and tapped holes

By T-slots and tapped holes in the mounting surfaces.
