EGT / EGK

Spindle driven with
trapezoidal or ballscrew spindle

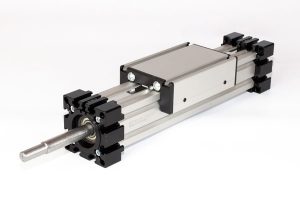

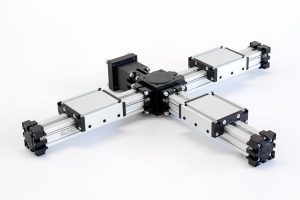

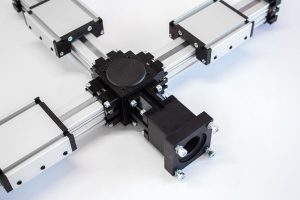

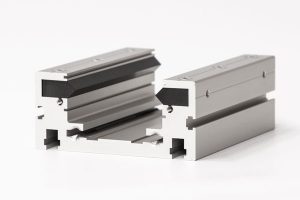

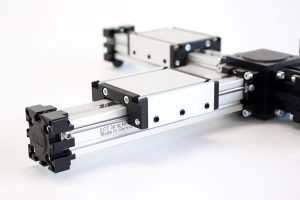

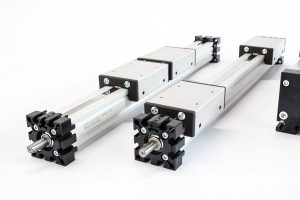

Function: This unit consists of an aluminium square profile with lateral V-guides. The carriage, which is driven by means of a trapezoidal/ballscrew threaded spindle with lead screw, moves along the unit guided by V-slides that are adjustable free of play. Where two linear units are used in parallel or where two carriages are mounted on one unit, the leading-nut receiver can be used to adjust the symmetry of the carriages. The linear opening of the unit is sealed with a stainless steel cover band to make the unit splash-proof and dust-tight.

As required. Max. length 3.000 mm

T-slots, tapped holes (size 40)

By T-slots or tapped holes in the bearing block, mounting sets.
