LINEAR UNITS OF UNIQUE QUALITY

There is hardly any area within machinery and equipment automation technology that does not require linear systems. Since 1990, Bahr Modultechnik has been your expert for the manufacture of linear units of superior quality.

With our state-of-the art warehouse management system, great manufacturing depth and efficient work and production processes we can guarantee short delivery and reaction times as well as permanent readiness to deliver with a high added value.
You can count on us to ensure your success.

Passgenaue Linearsysteme von Bahr

OUR SERVICE FOR YOU

Customer satisfaction is our top priority. Our modern machinery and CAE systems allow us to fulfil your specific needs. Working together with you we will make every effort to develop individual and customized solutions in the field of linear technology. Our experienced staff will be ready to assist you with your project and will realize highly complex applications to your utmost satisfaction.
Please make use of our service offer.

We offer you a comprehensive set of product and process documentation. You can simply download anything you require.

  • Catalogues, flyers, data sheets, installation and maintenance instructions, machinery directives, certificates

more >

Thanks to our ERP system we have an efficient value creation process in place and can continuously optimize the management of our operations. We can guarantee you:

  • High quality and productivity
  • High availability due to optimized stock levels
  • Short delivery periods due to reduced order processing times

more >

We assist you with your project. Our experienced team will always be ready to give you advice and will perform highly complex engineering work to your complete satisfaction. We offer the following engineering services:

  • Product selection and application support
  • Professional and technical offer preparation with short reaction times
  • Engineering and design services with modern CAE systems for a wide range of applications from simple and mechanical linear units up to complex multi-axis systems

more >

We manufacture quality products according to our customers’ requirements and we are able to produce even small quantities at attractive prices. Thanks to our highly qualified staff and our state-of-the-art machinery we can offer customized solutions for all industries from individual parts to series production.

more >

We set great store by providing you with CAD models for your design. The CADENAS PARTcommunity download portal allows you to download 3D models quickly and easily from the homepage.

more >

The high quality and long lifetime of our products are a guarantee of maximum operation reliability. We perform static and dynamic calculations for you using FEM. In addition, specially developed calculation products are available to you on our homepage. These products will assist you in:

  • calculating the lifetime of linear axes
  • calculating the axial section modulus as well as the parameters for servomotors with toothed belt or spindle drive by means of calculation tables

more >

  • Individual and flexible packaging solutions
  • AEO air cargo certification
  • Wooden packaging acc. to IPPC standard on request
  • Automated tariff and local customs handling system (ATLAS)

more >

  • On-site customer support
  • Emergency deliveries within 24 hours domestically and 48 hours internationally
  • Repair and maintenance service
  • Product and service training

more >

OUR LINEAR TECHNOLOGY
WILL INSPIRE YOU!

We continuously develop and innovate our linear units so that they can be used for almost every application in the field of mechanical and plant engineering.

Vacuum technology has meanwhile become an integral part of production and manufacturing technology as well as of food, chemical and medical engineering.

Safety is especially important in places where flammable materials are handled. Above all, this applies to linear systems in the chemical and petrochemical industries and in the oil and gas production industries. We offer linear units specially optimized with regard to explosion protection, which fulfil the ATEX Directive 2014/34/EU with the standards:

  • ISO 80079-36:2016
  • ISO 80079-37:2016
  • Technical Rules for Hazardous Substances (TRGS) 727

Linear systems for clean-room applications are used for special production processes in the semiconductor, medical, optical, laser, food and aerospace industries. Our linear units do not exceed the maximum limits for particle values ≥ 0.5 μm/m³ and are thus certified according to the following clean-room classes:

  • US Federal Standard 209E Class 1 – 100.000
  • VDI 2083 Class 1 – 6
  • ISO 14644-1 Class 1 – 8
  • E-Series– linear systems in a stainless steel shell for clean surfaces

Based on our linear units, we develop clever multi-axis systems with ball screw, linear motor, toothed belt or toothed rack drive for industrial automation. Thanks to our highly qualified staff and our comprehensive and modular product portfolio we can offer customized solutions for the following areas of application:

  • Mechanical and plant engineering
  • Order picking and storage systems
  • Packaging and materials handling technology
  • Assembly lines and palletizing systems
  • 3D printing

Corrosion protection is an essential requirement where water and moisture play a role. Splash water influences, water vapour exposure or rinse water contact – our corrosion protected linear system variants withstand all these conditions due to their combination of anodized aluminium and steel components made of A2 steel.

  • Entire product range also available with corrosion protection
  • Corrosion protected variants for exterior protection
  • Expanded corrosion protection options for complete protection
  • E-Series– linear systems in a stainless steel shell for clean surfaces

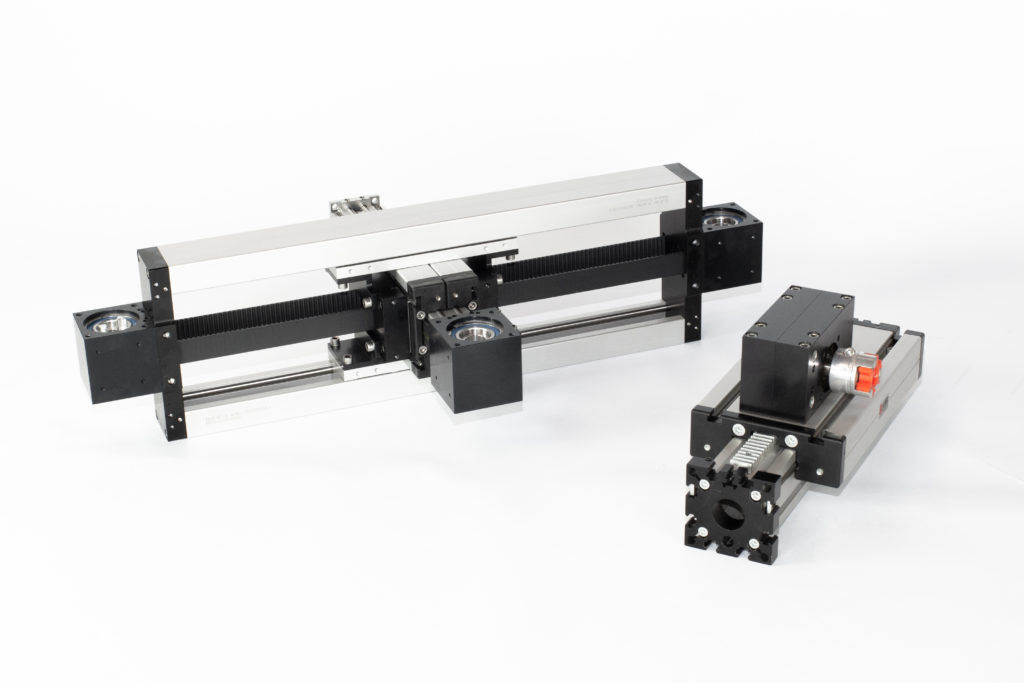

Safe lifting and vertical positioning of loads: these are the challenges for lifting systems. Highly dynamic toothed belt axes with Omega deflections and fixed drives or accurate positioning systems with spindle drives – our stroke-optimized linear systems offer robust solutions with optimum performance characteristics.

  • Highly accurate ball screws with repeating accuracies up to ± 0.02 mm
  • Powerful trapezoidal thread drives with self-locking device for safe lifting
  • Ready-to-use solutions for freight elevators
  • Highly dynamic linear systems with toothed belt drive
