Belt drive with
two separately driven carriages

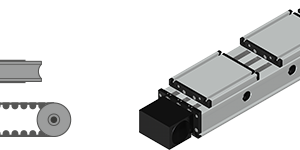

This unit consists of a rectangular aluminium profile with 2 integrated roller guides. The carriage is moved by a belt drive. Each carriage can be moved separately by its own drive. This unit has twin pulleys, which run on separate bearings, and two independent, parallel drive belts, one for each carriage. The openings of the guide body are sealed with 3 stainless steel cover bands to protect the guide from splash water and dust.

As required, max. length 4.000 mm without joints.

By T-slots.

By T-slots and mounting sets. The linear axis can be combined with any T-slot profile.

HTD with steel reinforcement, no backlash when changing direction.
Repeatability ± 0,1 mm.

In the standard version, the carriage runs on 8 rollers which can be adjusted and serviced at a central servicing position. For longer carriages the number of rollers can be increased.
