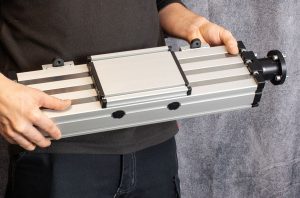

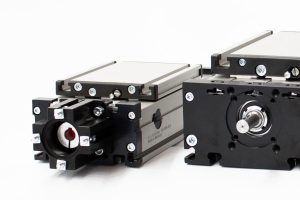

Function: This unit consists of a rectangular aluminium profile with 2 integrated roller guides. The carriage is driven by means of a rotating spindle with leading nut. Where two parallel linear units are used or where two carriages are mounted on one unit, the leading-nut receiver can be used to adjust the symmetry of the carriages. The openings of the guide body are sealed with 3 stainless steel cover bands to protect the drive from splash water and dust.

As required. Max. length 3.000 mm without joints.

By T-slots.

By T-slots and mounting sets. The linear axis can be combined with any T-slot profile.

In the standard version, the carriage runs on 8 rollers which can be adjusted and serviced at a central servicing position. For longer carriages the number of rollers can be increased. Repeatability ballscrew ± 0,025 mm, trapezoidal thread ± 0,2 mm.
