DSSZ

Function:

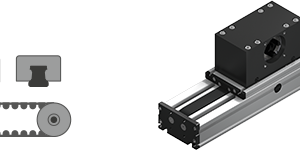

This linear unit consists of a rectangular aluminium profile with integrated rail guides. The carriage, which has runner blocks, is driven by a timing belt. Each standard pulley includes a coupling claw on one side and is equipped with maintenance-free ball bearings. Belt tension can be readjusted by a simple screw adjustment device in the carriage. This device can also be used for symmetrical adjustment of two or more linear units running parallel.

As required, max. length 6.000 mm without joints.

By T-slots.

By T-slots and mounting sets. The linear axis can be combined with any T-slot profile.

HTD with steel reinforcement, no backlash when changing direction.
Repeatability ± 0,1 mm.

In the standard version, the carriage runs on 4 runner blocks which can be serviced at a central servicing position. For longer carriages the number of runner blocks can be increased.
