CLLZ

Special positioning system for building
3D printers and tripods.

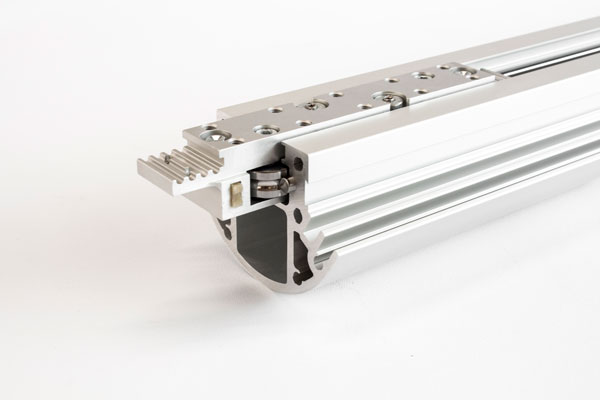

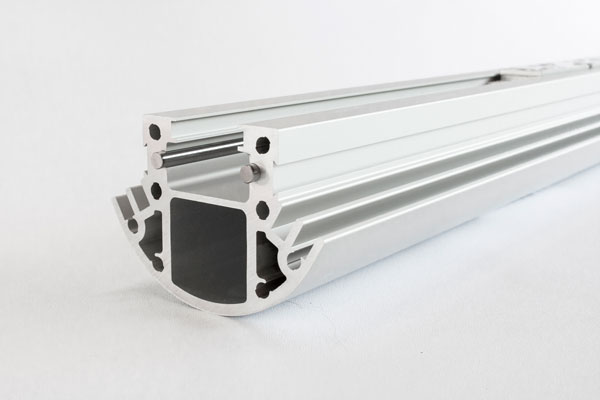

The guide body consists of an aluminium profile with elegantly rounded outer edges, with a roller guide integrated into it. The carriage is moved by means of a revolving interior timing belt. At the front face there is a timing belt deflection unit with integrated coupling claws on two sides. The opposite front face is provided with a plate containing a tensioning device for the timing belt.

As required. Max. length 6.000 mm without joints.

By tapped holes.

HTD with steel reinforcement, no backlash when changing direction.
Repeatability ± 0,1 mm.

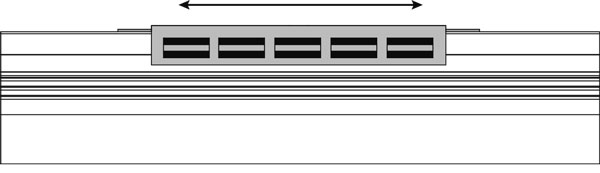

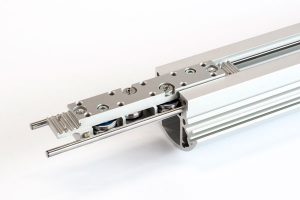

The carriage runs on 5 rollers which can be adjusted and serviced at each central servicing position. Two grease nipples at the carriage enable relubrication of the positioning system.
