CLLT/K

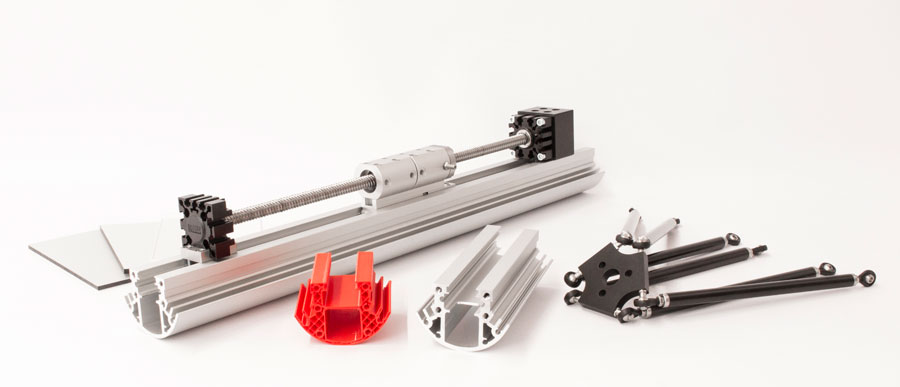

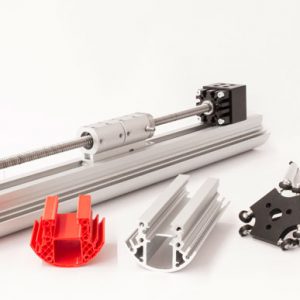

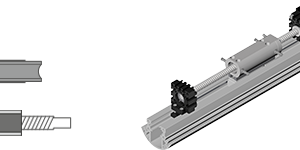

Special positioning system for building 3D printers and tripods.

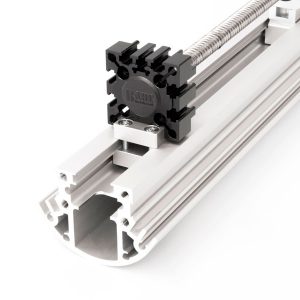

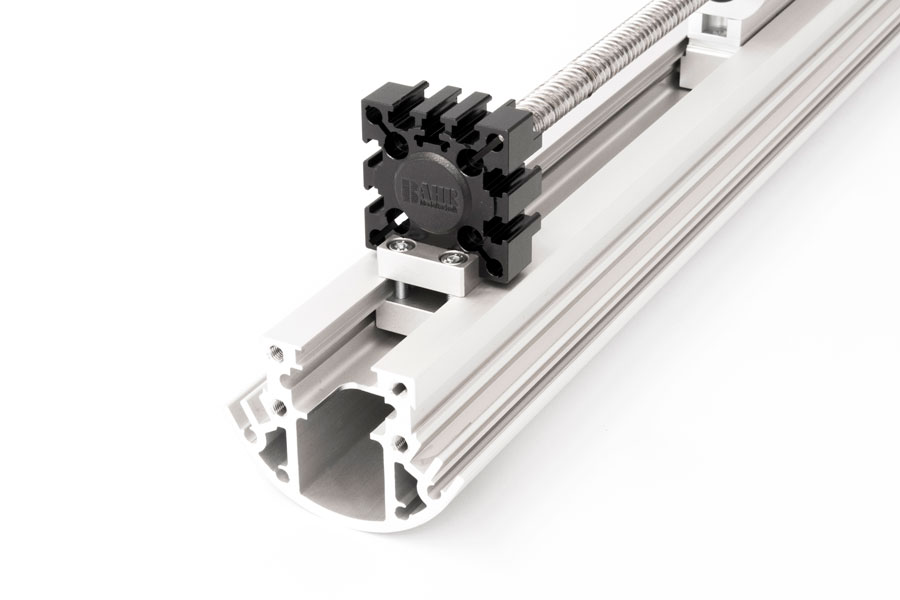

Function:The guide body consists of an aluminium profile with elegantly rounded outer edges. The carriage is moved by a rotating threaded spindle provided with a follower nut. The spindle nuts move along the profile axes through a roller guide system to ensure a smooth, synchronous run. Additional grooves integrated in the profi le facilitate the optional fixation of various side frame covers made of glass, plexiglass, aluminium or composite materials.

As required. Max. length 6.000 mm without joints.

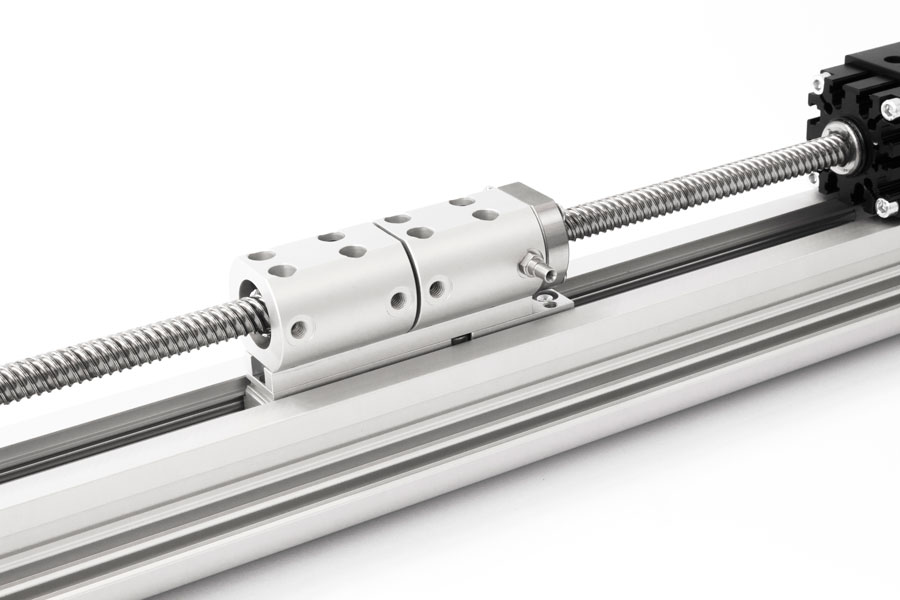

Trapezoidal or ball screw spindle, max. length 3000 mm.

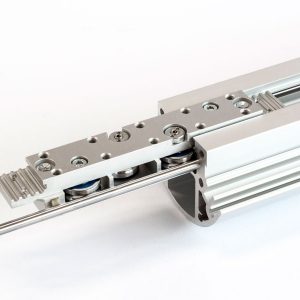

The carriage runs on 5 rollers which can be adjusted and serviced at each central servicing position. Two grease nipples at the carriage enable relubrication of the positioning system.
